This has definitely been a learning experience. If I had better tools and a little more patience, the work table would be even better, but I am happy so far with what I accomplished...On to the pics!

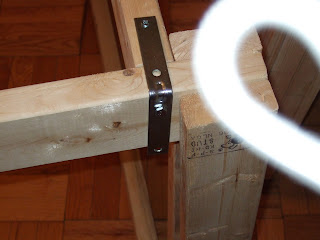

I made the top here. My original design idea was to have the legs be 4x4s, but I figured that they would be too heavy and a bit too expensive, so I just went with 2x4s and came up with a design to interconnect them. Design- two sets of 2 vertical 2x4s connected and separated by a board on the bottom and the top. I used our current computer desk's height to figure out a good height for the legs. I also had to take into consideration the AC unit against the wall.

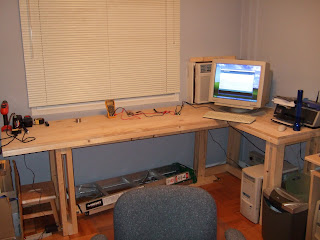

The L bench top is made of two pieces: a 6 foot board and a 4 foot board. Ideally, I wanted to have it symmetrical, but that did not work out. I had to attach the 6 foot board to the 4 foot board resulting in a 8 foot x 4 foot "L" on the outside edge and a 6 foot x 2 foot "L" on the inside edge. I wanted to design the bench so that it would not need a pole/support in the middle of the "L". (Don't you just love banging your knees or even worse on those supports??) I built three sets of legs; two sets attach directly while the other set joins the side of those cross beams.
A lot of the table was done on the fly. I placed the top pieces on to see where I had to notch out the beam so they could sit flat. The notches in the middle are from when I thought the 6 foot section was going to be the main structure. I had to notch out a section for the middle beam and a section for where the two edges would come together. Originally, I had made just a big notch so that I would not have to worry about having to cut the notch so precisely, but the second time around, I tried to be a little more careful. In the end that helped because since the notch is so tight the top is more stable and no more bracing was needed. All in all, this has been a good project. I am a bit unsure about the long-term life of the table, but I tried to design it so that it could be taken apart and put back together fairly easily. That is why I used all the bolts as opposed to wood screws. The legs do lean a little bit so if anyone has an idea to make them a little more sturdy then I would be grateful.
